Far infrared ray ceramic heater infrared heating systems

Far infrared ray ceramic heater infrared heating systems

FOB Price:

US 3-15 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2500 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Escrow

Brand:

Laiyuan

Products Model:

LY-CH-15001

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-CH-15001

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: standard packing for CHINA [LAIYUAN] Infrared heating systems
Delivery Detail: --

Specifications

Product Description

Infrared heating systems

Specifications of Infrared heating systems :

IR ceramic heater
-Material:ceramic for body
-Used in chemical industry
-High quality & best price

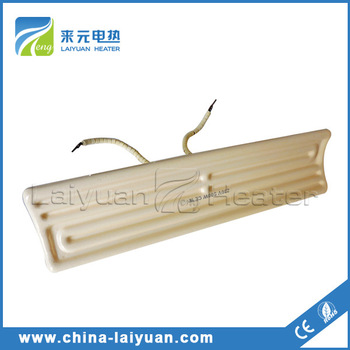

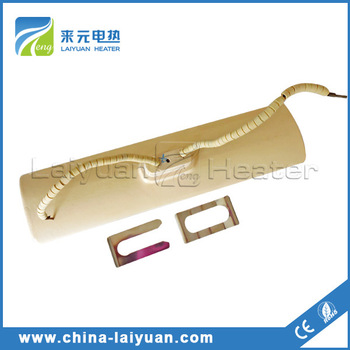

IR ceramic heater

Embedding type ceramic far infrared radiated elements apply glaze with high radiance,ceramic with good heat and shock property as base,and are sintered once by nichrome wire.

Components of Infrared heating systems :

1.Base body:made of ceramic material with good heat shock property.

2.Heating nature:sintered by high quality nichrome wire.

3.Glaze:composed of metal oxide material with good far infrared radiated property.

4. Put right amount of additive and improve radiant intensity and strengthen adaptability of glaze billet

Main technical parameter and property of Infrared heating systems :

1.Radiated characteristic: the tiptop single color of radiance of element can reach 0.9
2.Time of heating response: from room temperature to surface temperature of radiated plate, the fixed time will not exceed 20 minutes.
3.Cold and hot resistance: the base body is heated to 800 C and put in cold water repeatly for many times and no cracking. After cold and hot mutual change test for five times, no peel and no craze.
4. The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage.
5.Good chemical stability; strong causticity-resistance; perfect oxidation-resistance
6.The heating damage of non radiated surface is small.
7. Resistance in common temperature:	10^12 ohm ^0cm
8.Uneven degree for radiated surface temperature:≤15%
9. Rupture strength for base body:	440Kg/cm2
10.Tolerance of power:	≤5% at rating working voltage
11.Cold state insulated resistance	500V tramegger>2 mΩ
12.Thermal state insulated resistance:	500V tramegger>5 mΩ
13.Using life span:	>3000 hours
14.The effect of energy saving is obvious, increasing 10-25% compared with silicon carbide element
15. The life span can prolong more than a few times compared with silicon carbide element.

Product Photos

Appilication

Certifications

Packaging & Shipping

Factory Photos

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
